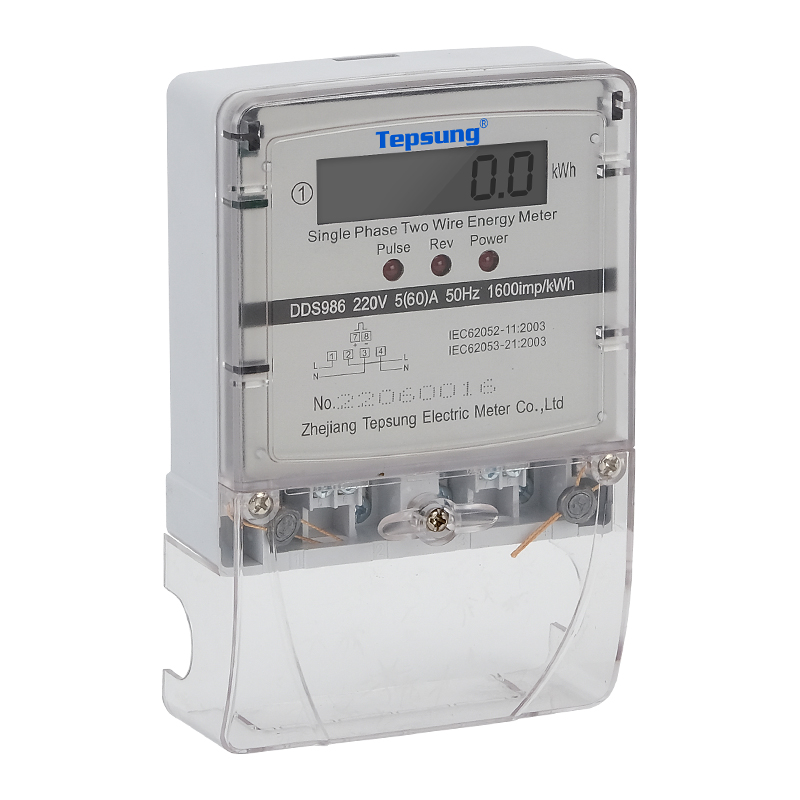

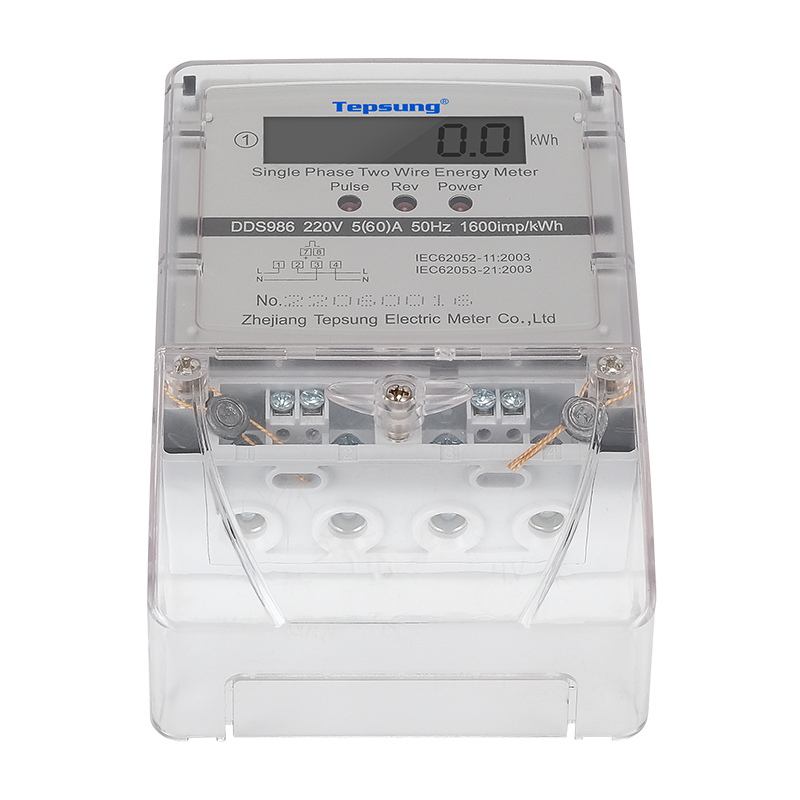

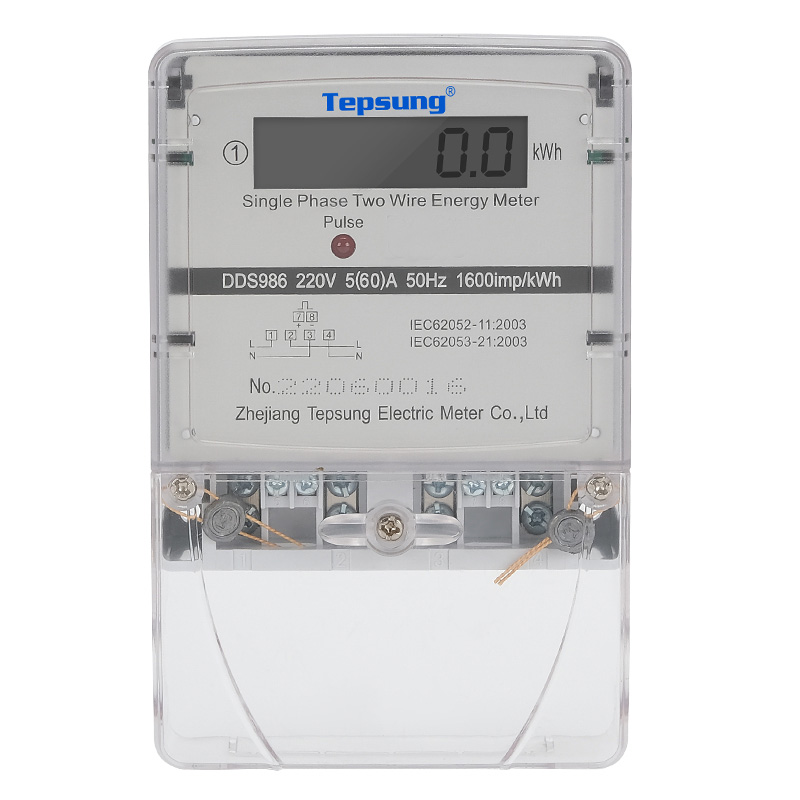

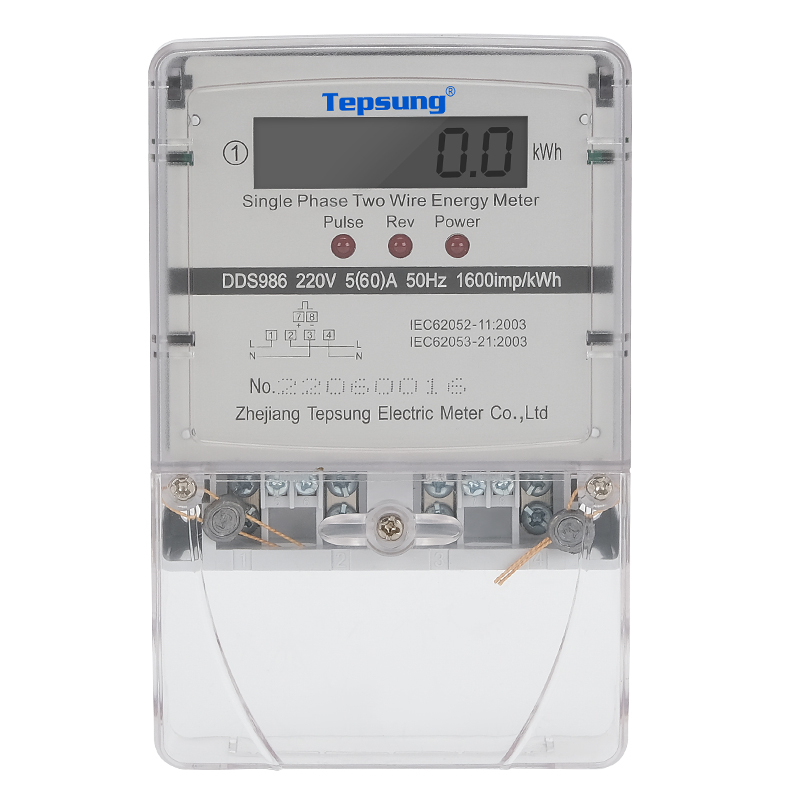

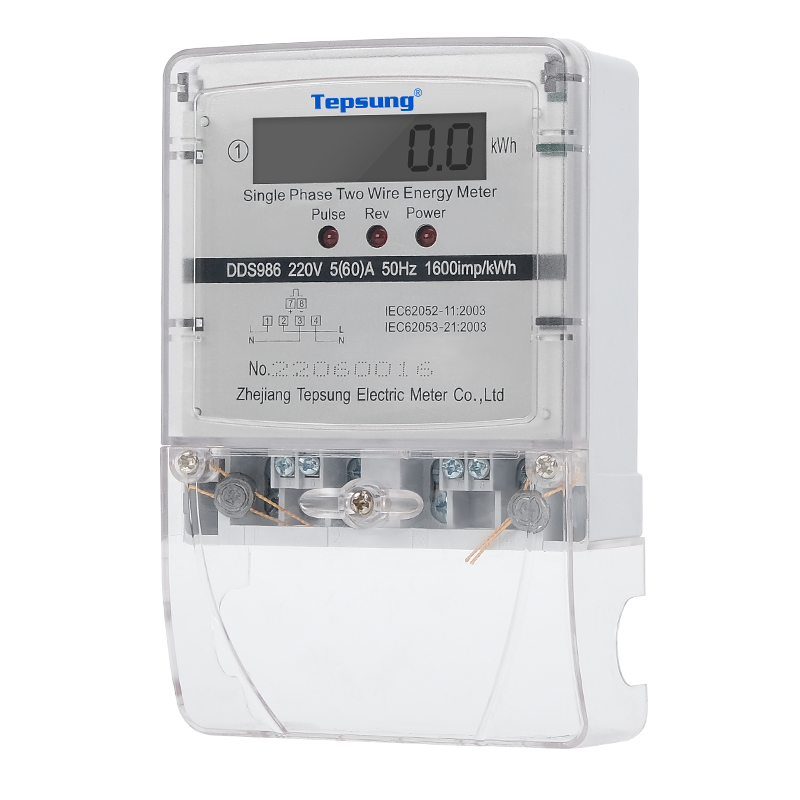

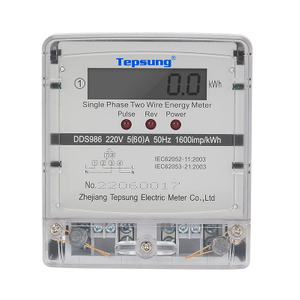

This digital electric energy meter adopts advanced digital measurement technology, ensuring highly accurate measurement of electrical energy. With an accuracy class of up to 0.5S, it can precisely record active energy consumption in kilowatt-hours (kWh), minimizing measurement errors and providing reliable data for accurate billing and energy management.
Equipped with a clear and easy-to-read digital display, usually an LCD (Liquid Crystal Display), the meter shows various parameters at a glance. These include cumulative energy consumption, real-time power consumption, voltage, current, power factor, and frequency. The display is designed to be intuitive, allowing users, whether homeowners or business operators, to quickly understand their electricity usage patterns and make informed decisions regarding energy conservation.
Our meter comes with multiple communication interfaces to meet different needs. Common options include RS-485, which enables stable wired communication with external devices such as data loggers, energy management systems, or utility company servers. Additionally, some models support wireless communication technologies like ZigBee, LoRa, or Bluetooth. These communication features facilitate remote data collection, allowing for real-time monitoring of electricity consumption from anywhere. Utility companies can remotely read the meter data without the need for on-site visits, saving time and resources. Users can also access their energy usage information through mobile apps or web portals, enabling them to track and manage their energy consumption more effectively.
The meter has the ability to record load profiles, storing detailed data on electricity consumption at regular intervals. This data can be used to analyze peak and off-peak usage periods, helping users optimize their electricity consumption and potentially reduce costs. For example, businesses can adjust their production schedules to take advantage of lower electricity rates during off-peak hours, while homeowners can identify energy-consuming appliances and adjust their usage habits accordingly.
To ensure the integrity of the measurement and prevent unauthorized interference, the meter is equipped with a sophisticated tamper detection mechanism. It can detect various types of tampering, such as opening the meter enclosure, manipulating the electrical connections, or interfering with the internal circuitry. When a tamper event is detected, the meter can record the event and send an alert, either locally through an indicator or remotely via the communication interface. This helps to safeguard the accuracy of the measurement and protects the interests of both users and utility providers.
Rated Voltage: Typically suitable for 220V or 230V single-phase power supplies, with a tolerance range to accommodate normal voltage fluctuations in the grid.
Rated Current: Available in different current ratings, such as 5(30)A, 10(50)A, 20(100)A, etc., to meet the power requirements of various electrical loads.
Frequency: Compatible with both 50Hz and 60Hz power frequencies, making it suitable for use in different regions around the world.
Operating Temperature: Capable of operating in a wide temperature range, usually from -20°C to +70°C, ensuring stable performance in various environmental conditions.

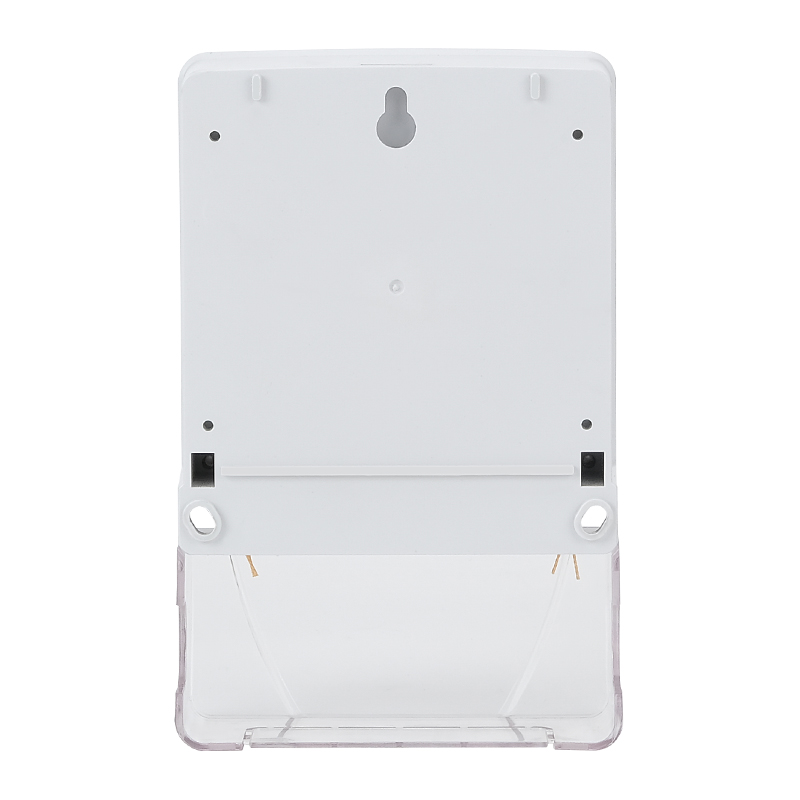

The meter is designed for easy installation. It can be mounted on a standard electrical panel or DIN rail, and the wiring is straightforward, following the standard single-phase two-wire connection method. After installation, users can start using the meter immediately to monitor their electricity consumption. For communication-enabled models, simple configuration steps are required to connect to the relevant communication network for remote data access.
Ideal for households to accurately measure the electricity consumption of various appliances, helping homeowners keep track of their energy usage and reduce electricity bills. It also provides valuable data for promoting energy-efficient living.
Such as small shops, restaurants, cafes, and offices. Business owners can use the meter to monitor and control their electricity costs, which is an important part of their operating expenses. By analyzing the consumption data, they can implement energy-saving measures and improve their overall operational efficiency.
In light industrial facilities where single-phase power is used for small machinery, equipment, or lighting systems, our digital electric energy meter can accurately measure the electrical energy consumed, supporting cost allocation, performance evaluation, and compliance with energy regulations.
Type | 1 Phase 2 Wire |
Connection | Bottom connected |
Voltage | AC220V,230V,240V |
Basic current(Ib) | 5A,10A,15A,20A,30A |
Max current(Imax) | 80A |
Starting current | 0.04%Ib |
Frequency | 50Hz,60Hz |
Accuracy | Class 1.0 |
Operating temperature | ~25℃~70℃ |
Display | Digital or Analog type |
Size | 101mm(width)*55mm(depth)*165mm(height) |
weight | 0.36kg |
Package | Inner box and carton box |
Customized support(OEM) | Yes |
