Single Phase Digital Electronic KWh Meter

The Single Phase Digital Electronic kWh Meter accurately measures electricity consumption using advanced digital technology. Featuring reliable performance and user-friendly operation, it provides precise energy monitoring for residential, small commercial, and light industrial applications.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Design and Technology of the Single Phase Digital Electronic KWh Meter

Clear Digital Display and On-site Configuration

The meter features a high-contrast, easy-to-read liquid crystal display that clearly presents critical electrical consumption parameters. Facility operators can instantly access data regarding cumulative kilowatt-hour usage, real-time power consumption, voltage, current, and power factor. Beyond simple visualization, this unit supports flexible on-site configuration. Technicians can quickly modify communication baud rates, pulse output settings, and other operational parameters directly through the physical interface buttons or via a secure Bluetooth application. This localized control drastically shortens engineering deployment times and simplifies the commissioning cycle, ensuring that the monitoring infrastructure is operational with minimal delay.

Solid-State Electronics for Long-Term Durability

At the core of this measurement device is a sophisticated solid-state electronic architecture. By replacing traditional analog moving parts with advanced microcontrollers and integrated circuits, the system achieves superior measurement precision through exact sampling of voltage and current signals. This solid-state engineering directly translates to exceptional durability and environmental adaptability. The internal circuitry provides outstanding resistance to mechanical vibrations and operates reliably across a wide temperature range. Consequently, facility managers can expect a dependable service life spanning 10 to 15 years, which significantly reduces long-term maintenance overhead and replacement costs across extensive monitoring networks.

Remote Communication and System Integration

To address the complex requirements of modern facility administration, this device incorporates versatile remote communication and system integration capabilities. Standard configurations include RS-485 Modbus-RTU, facilitating stable wired connections to external data loggers and supervisory control systems. Furthermore, advanced models offer wireless protocols such as LoRaWAN and Wi-Fi. These diverse connectivity options allow for seamless integration into comprehensive Building Energy Management Systems. Utility providers and property administrators can execute centralized remote operation and maintenance, gathering real-time and historical consumption data to drive demand response initiatives and optimize overall network efficiency without requiring physical site visits.

Working Principle of Smart Bi-directional Metering

The core operation of the Single Phase Digital Electronic KWh Meter relies on the continuous, high-speed sampling of voltage and current signals within the electrical circuit. Utilizing high-precision analog-to-digital converters, the internal microcontroller processes these signals to calculate instantaneous electrical power. Crucially for modern grid applications, particularly in photovoltaic solar generation and decentralized energy scenarios, the architecture supports smart bi-directional metering. It accurately measures both import and export energy, clearly differentiating between power drawn from the main grid and surplus electricity generated locally. By integrating these power calculations over time, the device delivers precise net metering data, ensuring accurate settlement for complex energy ecosystems.

Core Advantages of the Single Phase Energy Meter

High Accuracy and International Compliance

Delivering exceptional precision in electrical energy measurement, this digital unit achieves an accuracy class of 0.5S or better, ensuring that consumption data is rigorously exact. This technical precision is backed by strict international compliance and certification. The device meets the rigorous standards set by IEC 62053, MID, UL, and CE. For procurement teams and project developers, these authoritative certifications provide documented proof of compliance, effectively eliminating legal and regulatory concerns during billing audits, safety inspections, and official grid connection approvals. The precise calibration minimizes measurement drift, guaranteeing consistent financial accuracy over the device's operational lifespan.

Load Profile Recording and Installation Adaptability

The capacity to record detailed load profiles transforms this device from a simple measurement tool into a strategic analytical asset. It stores electricity consumption data at regular intervals, such as every 15 minutes or hourly, enabling administrators to identify peak usage periods and isolate energy-intensive processes. Complementing this data capability is the unit's exceptional installation adaptability. Engineered to accommodate standard DIN rail mounting or embedded panel installations, the device features standardized modular dimensions. This thoughtful physical design significantly reduces on-site construction complexity, minimizes spatial requirements within distribution cabinets, and accelerates the overall hardware deployment phase.

Advanced Tamper Detection and Data Protection

Safeguarding the integrity of measurement data is paramount, and this device integrates advanced physical and electronic anti-tampering mechanisms. The system actively monitors for unauthorized interference, such as opening the terminal cover, manipulating electrical connections, or attempting to bypass the internal circuitry. When combined with STS encrypted token prepayment technology, the security framework becomes exceptionally resilient. Any detected tamper event triggers immediate local indicators and remote alerts via the communication network. This comprehensive approach to data protection ensures the absolute security of energy revenue streams and maintains strict fairness in all financial settlements.

Comprehensive Energy Management Support

The combination of robust communication protocols and extensive data storage renders this device an indispensable component for comprehensive energy administration. It integrates smoothly into broader supervisory platforms, enabling centralized monitoring and precise control over distributed electrical loads. Administrators can generate detailed consumption reports, establish strict energy usage targets, and configure automated notifications for when specific operational thresholds are breached. This level of systemic visibility empowers organizations to optimize their energy utilization strategies, reduce unnecessary operational expenditures, and enforce corporate energy efficiency mandates across multiple facilities.

Practical Applications of the Single Phase KWh Meter

Residential and Multi-Tenant Facilities: In residential complexes and apartment buildings, the Single Phase Digital Electronic KWh Meter provides property managers with granular visibility into individual unit consumption. The bi-directional measurement and tamper-proof design ensure accurate, dispute-free billing while allowing residents to monitor their usage patterns and adopt conservation habits. Utility companies can also leverage this precise meter data for accurate load management and grid balancing.

Small Commercial Establishments: For retail spaces, restaurants, and office environments, tracking utility expenses is critical for maintaining operational profitability. By analyzing the detailed load profiles generated by the device, business operators can implement targeted conservation measures, upgrade inefficient equipment, and adjust operational schedules to minimize peak-hour surcharges, thereby improving their overall bottom line.

Light Industrial and Manufacturing Settings: Within light industrial facilities utilizing single-phase power for specialized machinery, accurate energy tracking is essential for precise cost allocation and performance evaluation. The robust solid-state construction withstands the vibrations and temperature fluctuations typical of manufacturing environments, ensuring reliable data collection for regulatory compliance and internal efficiency audits.

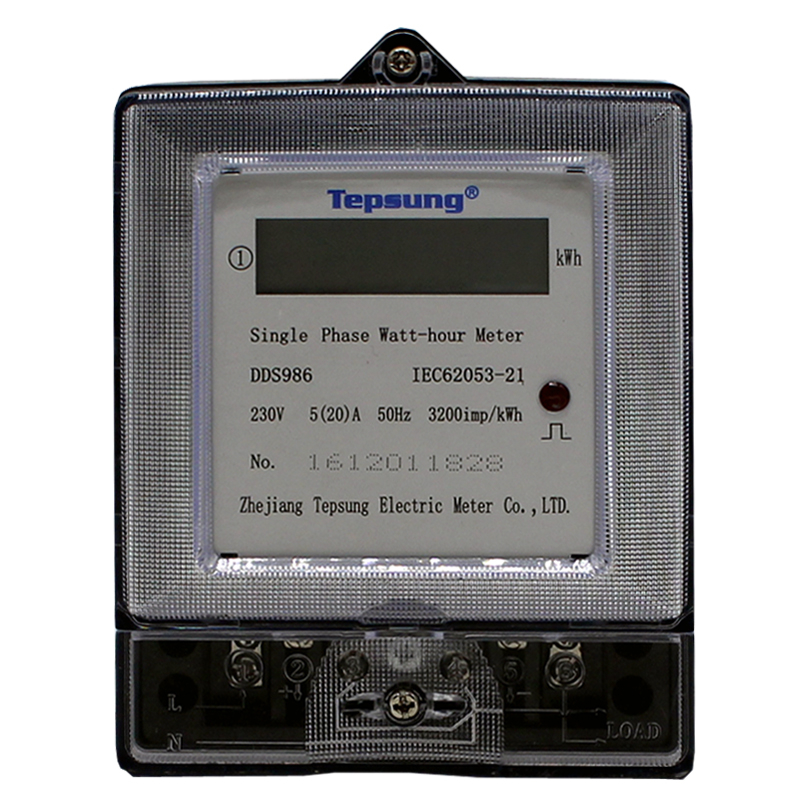

Single Phase Digital Electronic KWh Meter for industrial and commercial energy management
Detailed view of the Single Phase KWh Meter showing digital display and DIN rail mounting
