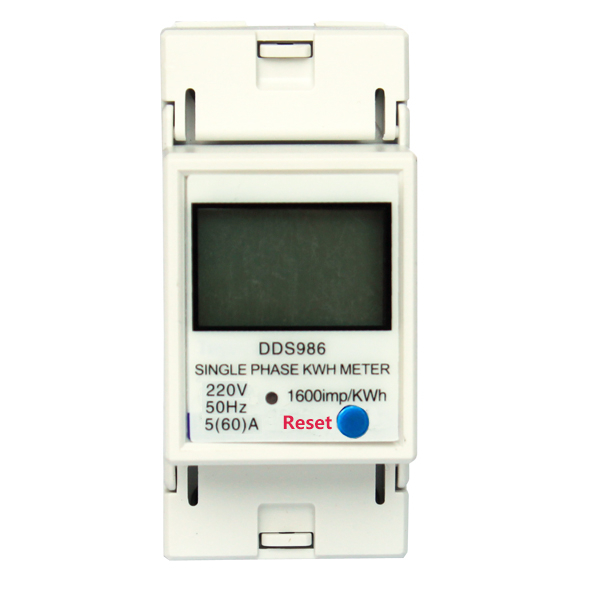

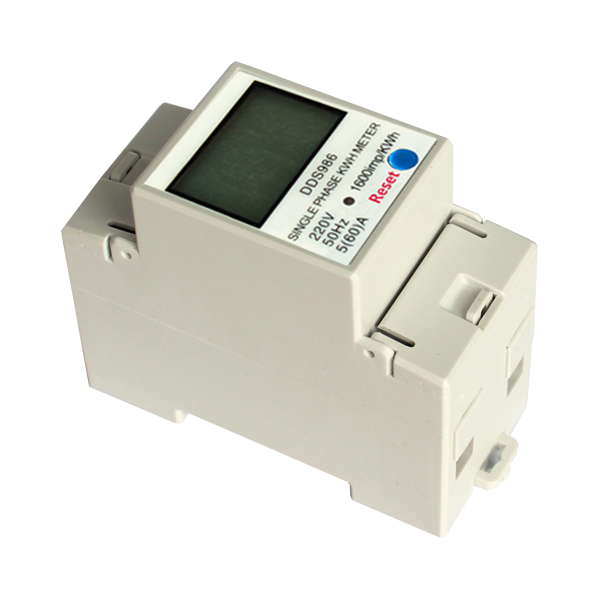

DDS986 Single Phase Electronic Active Energy Meter with DIN Rail Mounting

The DDS986 is a high-performance single-phase electronic active energy meter designed for DIN rail mounting. It features accurate energy measurement, stable operation, and easy installation—perfect for industrial control cabinets or residential distribution boxes. With a compact design, it saves space while delivering reliable data. Its electronic core ensures low power consumption and long service life, making it ideal for efficient energy monitoring and management.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • DDS986

  • Tepsung

  • 9028301300

1. Features

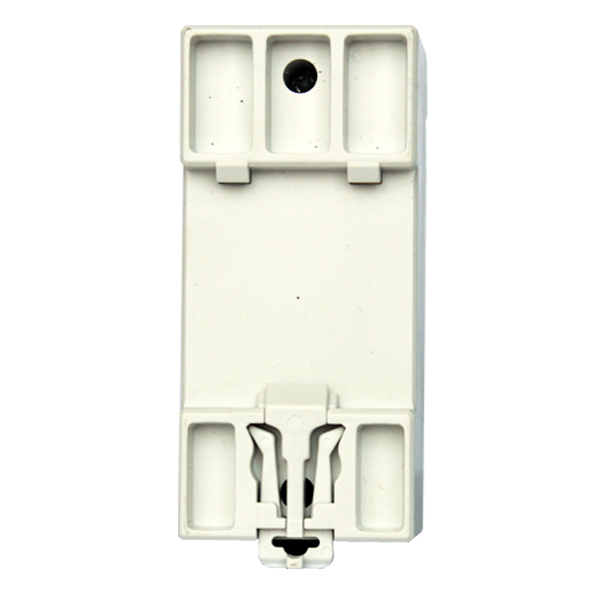

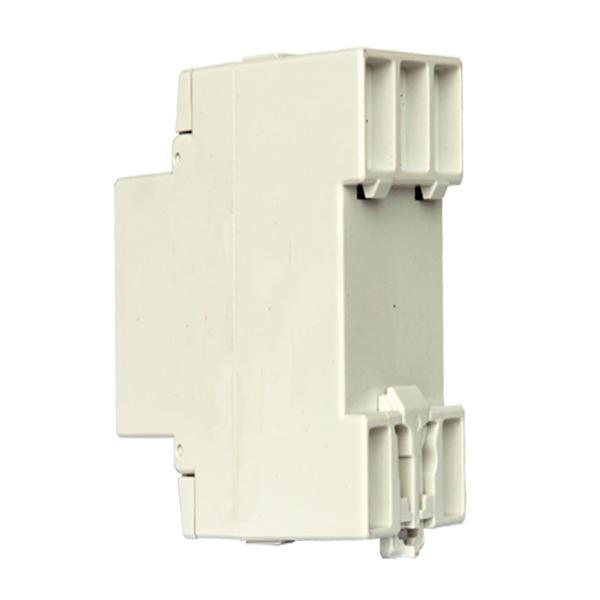

1.1 Compact DIN Rail Design
  • Fits 35mm standard DIN rails; size 36×66×78mm, weight 0.2kg—saves space in distribution boxes, supports side-by-side installation with circuit breakers. Single-person installation takes 5 minutes.

1.2 Stable & Accurate Measurement
  • Multi-voltage (AC220V/230V/240V) and dual-frequency (50/60Hz) compatible, adapting to regional grids.

  • Class 1.0 accuracy, starting current 0.04%Ib; Ib options (5A/10A/15A/20A/30A), Imax 80A—meets residential/commercial load needs.

1.3 Durable & User-Friendly
  • Digital display shows energy, current, voltage—avoids reading errors.

  • Operating temp -25℃~70℃, IP30 dustproof; bottom/upside wiring matches electricians’ habits. OEM customization supported.

2. Technical Parameters
2.1 Electrical Specs
  • Phase: 1 Phase 2 Wire

  • Voltage: AC220V/230V/240V; Frequency: 50/60Hz

  • Ib: 5A/10A/15A/20A/30A (optional); Imax: 80A

  • Starting Current: 0.04%Ib; Accuracy: Class 1.0

2.2 Physical & Environmental Specs
  • Display: Digital; Size (W×D×H): 36×66×78mm; Weight: 0.2kg

  • Operating Temp: -25℃~70℃; Storage Temp: -40℃~85℃

  • Protection Grade: IP30

2.3 Other Specs
  • Wiring: Bottom/upside connected; Package: Inner box + carton

  • OEM: Supported; Service Life: ≥8 years

3. Installation and Use
3.1 Pre-Install Prep
  • Confirm voltage/frequency matches; select Ib based on load (≤80A).

  • Check meter appearance; prepare screwdriver, wire stripper, multimeter.

3.2 Installation Steps
  1. Fix meter on 35mm DIN rail (push until "click" sound).

  1. Wire: Input L/N to "Input" terminals, load L/N to "Output" terminals (tighten to 2.0N·m).

  1. Test: Measure input voltage (220V±10%), power on to check display.

3.3 Daily Use
  • Read energy from digital display; press query button (if equipped) for voltage/current.

  • Inspect terminals/display every 6 months; contact professionals for faults (no private disassembly).

4. Applications
4.1 Residential
  • Apartments/villas: Fits small distribution boxes; Ib options match household load (5A~30A); Class 1.0 ensures fair fees.

  • Rental houses: Clear display avoids disputes; -25℃~70℃ temp range adapts to diverse environments.

4.2 Small Commercial
  • Stores/restaurants: Imax 80A handles equipment (fridges, AC); dual-frequency suits imported devices.

  • Offices: Lightweight design integrates with office electrical systems; low starting current records standby power.

4.3 Industrial & Civil
  • Factory dormitories: Temp range adapts to simple environments; OEM adds overload alarm (optional).

  • Public facilities: IP30 dustproof reduces maintenance; batch package cuts logistics costs.

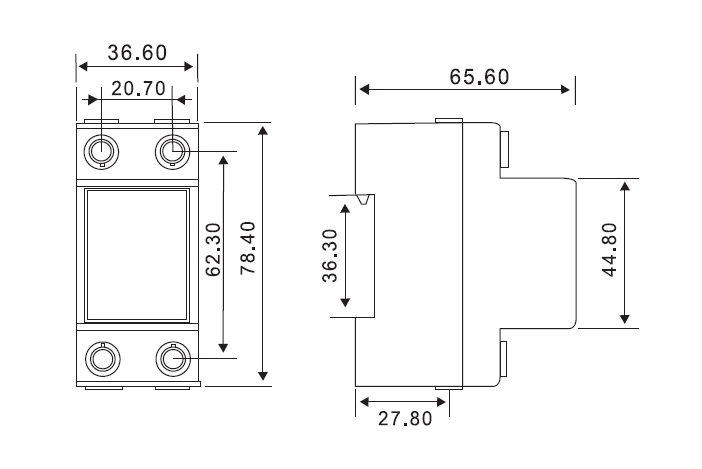

Outer and mounting dimension


Wiring diagram



Type

1 Phase 2Wire

Connection

Bottom and upside connected

Voltage

AC220V,230V,240V

Basic current(Ib)

5A,10A,15A,20A,30A

Max  current(Imax)

80A

Starting current

0.04%Ib

Frequency

50Hz,60Hz

Accuracy

Class 1.0

Operating temperature

~25℃~70℃

Display

Digital type

Size

36mm(width)*66mm(depth)*78mm(height)

weight

0.2kg

Package

Inner box and carton box

Customized support(OEM)

Yes


If you have any other requirements, please contact us.
