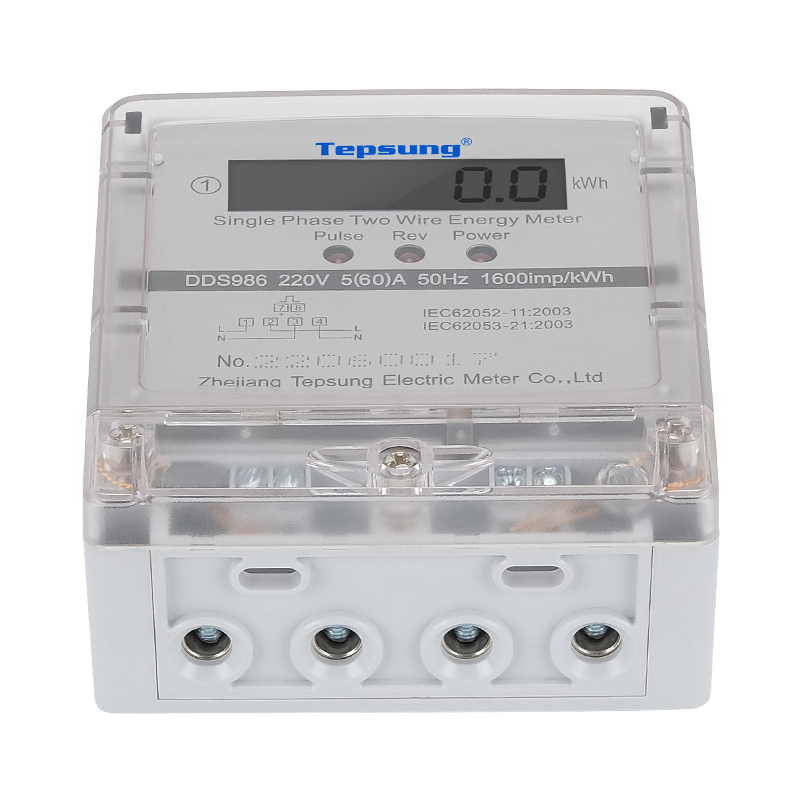

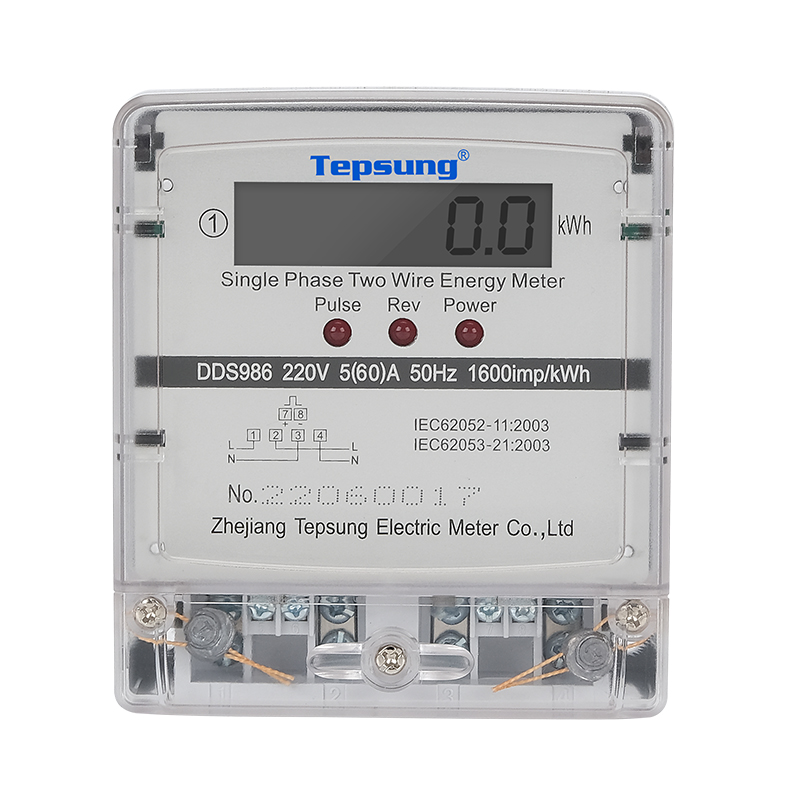

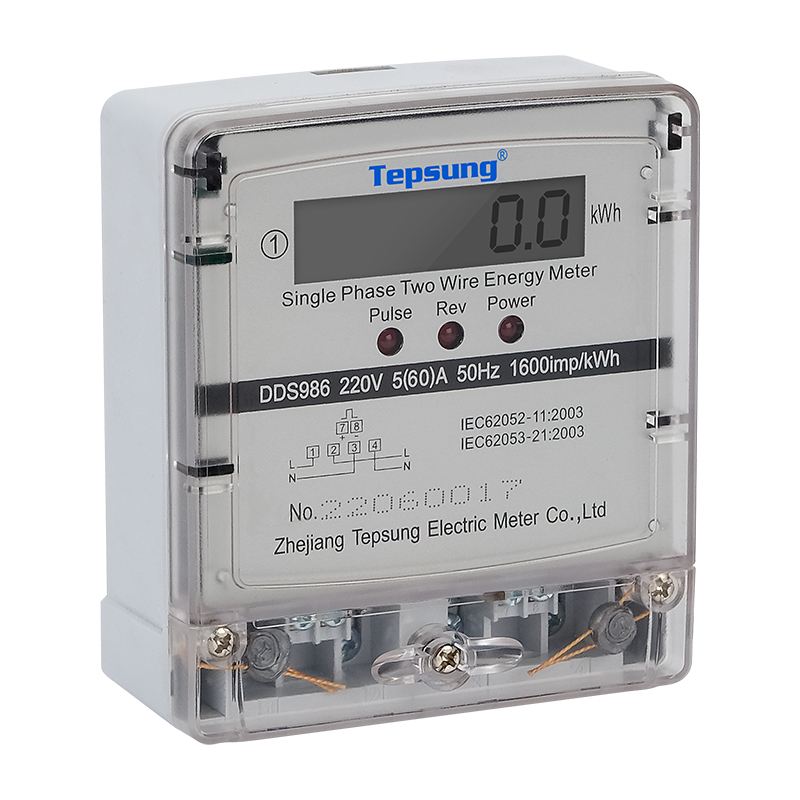

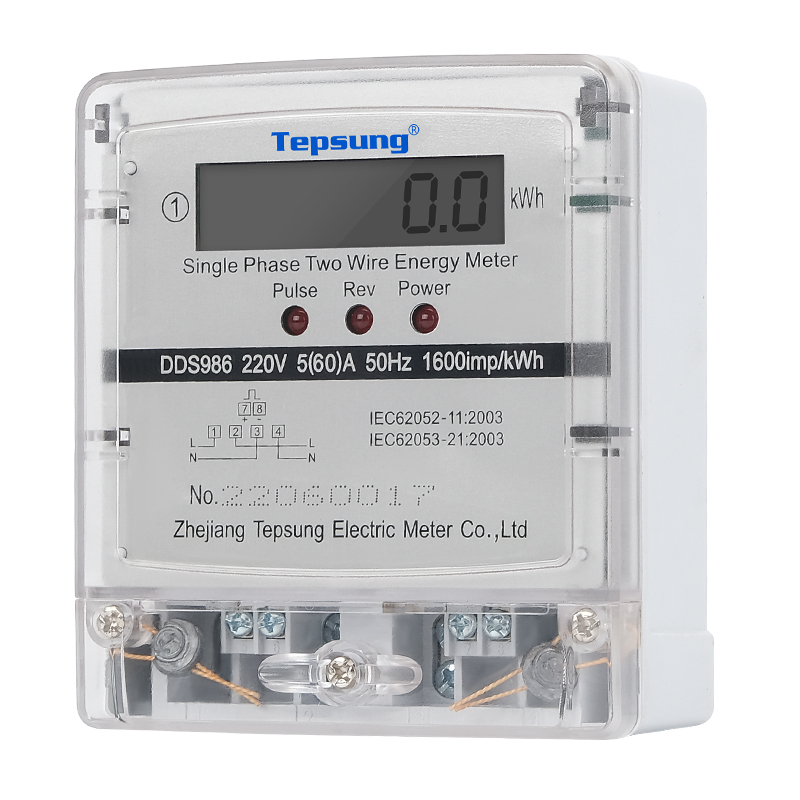

DDS986 Single phase two wire digital kWh meter

DDS986 single phase digital kWh meter is an electronic device built to measure electrical energy consumption in single-phase power systems. It calculates the electricity used (expressed in kilowatt-hours, kWh) and shows the data on a clear digital display, allowing for quick and easy reading.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • DDS986

  • Tepsung

  • 9028301300

DDS986 single phase digital kWh meter is an electronic device built to measure electrical energy consumption in single-phase power systems. It calculates the electricity used (expressed in kilowatt-hours, kWh) and shows the data on a clear digital display, allowing for quick and easy reading.

Accurate Energy Measurement
measures the active electrical energy consumed in single-phase AC power systems, calculating energy usage in kilowatt-hours (kWh) — the standard unit for electricity billing.
Digital Display
with a large clear LCD digital screen to shows the cumulative energy consumption.
Low Self-Power Consumption
Adopts energy-efficient electronic components, resulting in extremely low self-power loss.

Technical parameters

Parameter Item
Common Specifications
Model No.
DDS986 or OEM with customer's model
Phase Configuration
Single-phase (1P)
Rated Voltage
110V AC / 220V AC (50/60Hz)
Rated Current
5(60)A, 10(100)A (Ib/Imax)
Frequency Range
50Hz ± 5% / 60Hz ± 5%
Accuracy Class
Class 1.0 (per IEC 62053-21)
Energy Measurement Unit
kWh (kilowatt-hour)
Display Type
LCD (Liquid Crystal Display) - segment type
Operating Temperature Range
-20°C ~ +60°C
Storage Temperature Range
-40°C ~ +70°C
Relative Humidity
≤85% RH (non-condensing, at 40°C)
Protection Degree
IP54


Specialized in electirc meters and meter boxes
founded in 2000,
focus on electric meter manufacturing,
with technical support R&D team,
have more than 200 staffs,

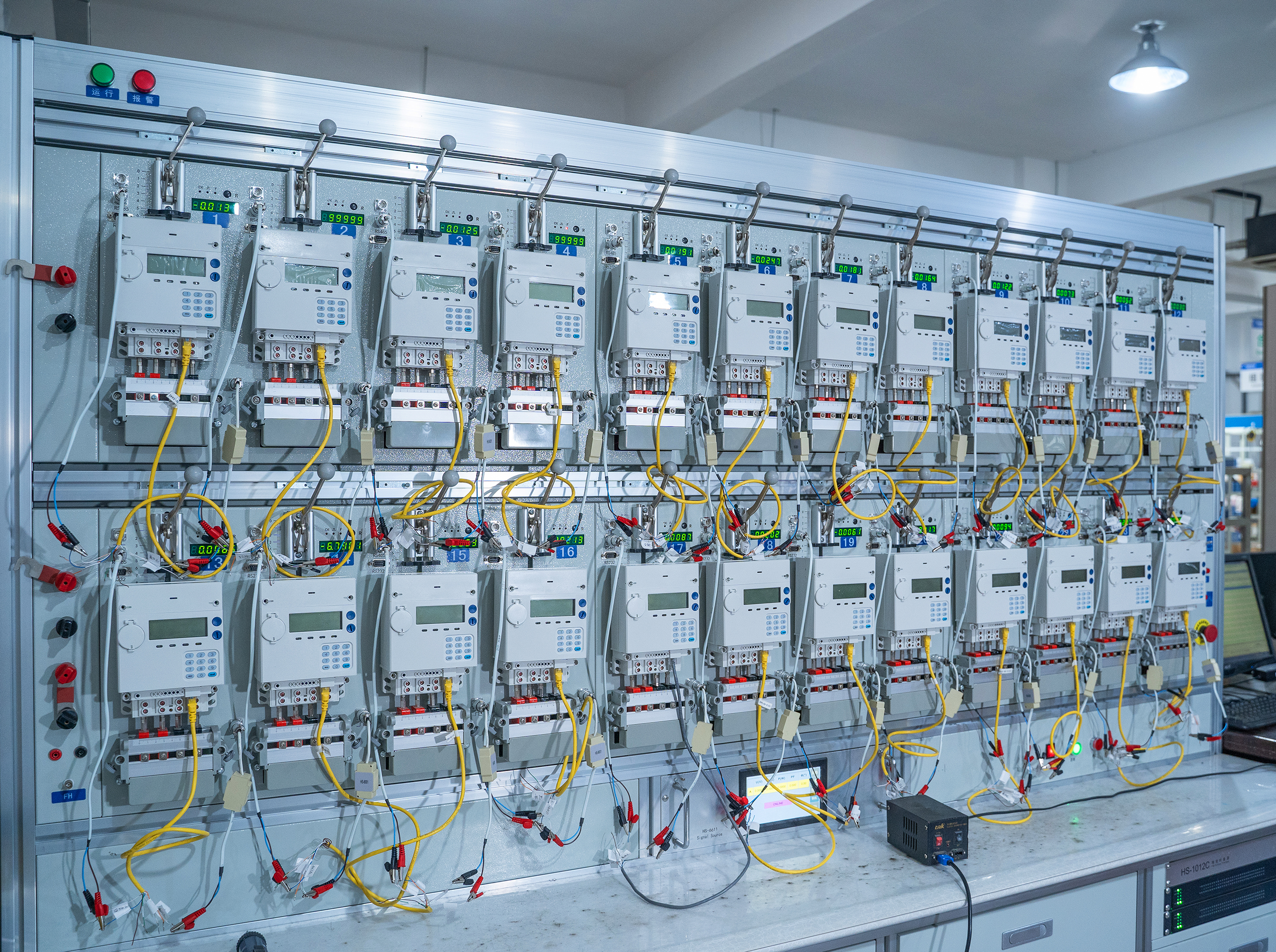

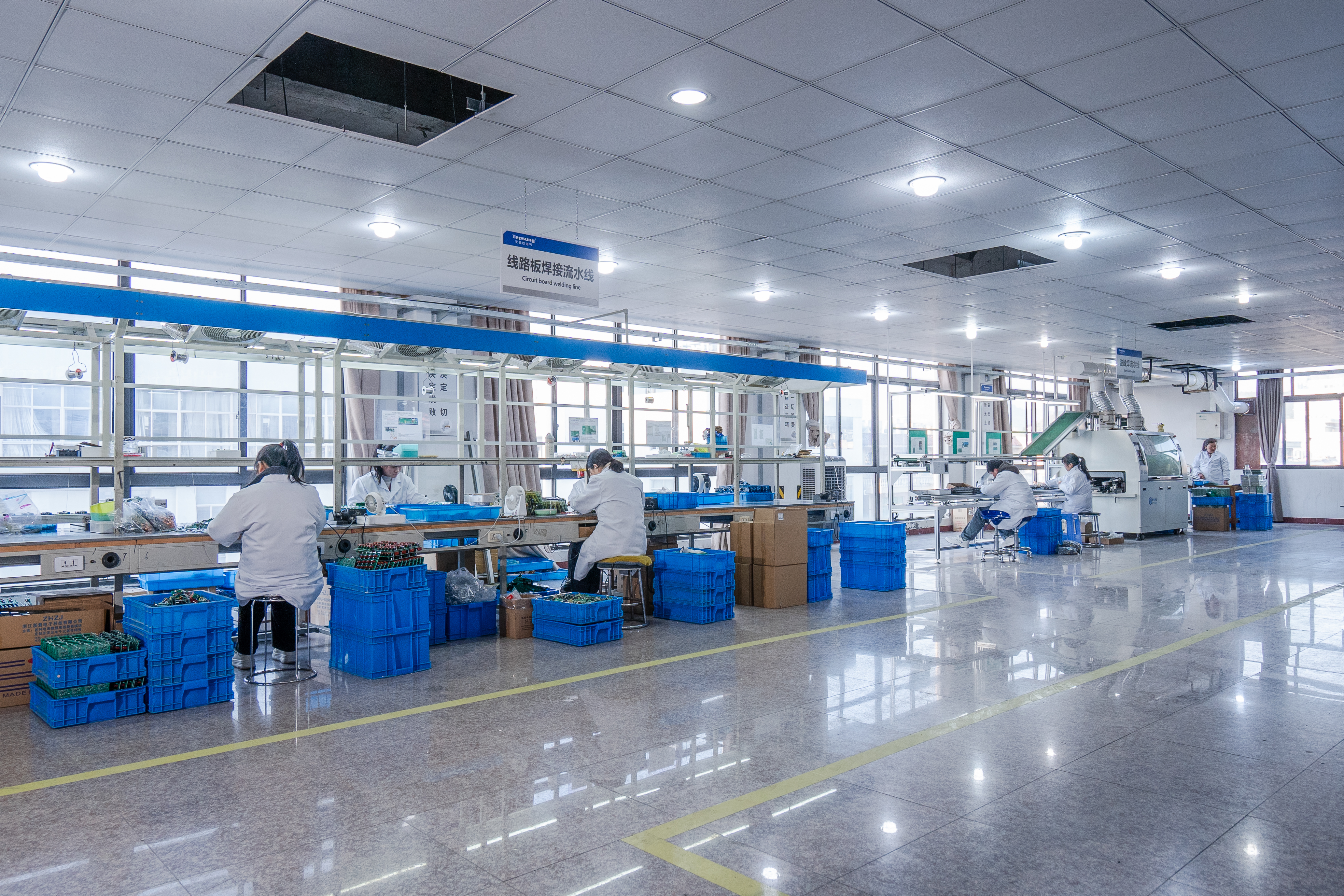

modern production lines
Founed history
in 2000,Founed the factory
in 2010,Traditional energy meters production  transfer to smart meters production
in 2018,Add the production lines of the SMC     meter box
in 2018,integrate the  production chains with      the smart meters
Certificates
During past years, we obtained the international certificates ,such as ISO9001,CE,KEMA,STS... and other type test reports,and comply to the IEC standard very strictly .
