Protecting residential and light-commercial electrical infrastructure is a massive challenge. You need enclosures capable of withstanding harsh environmental conditions. Mechanical stress and extreme weather constantly threaten sensitive electrical components. Traditional metal boxes rust quickly. They also require complex earth grounding protocols. Standard polycarbonate (PC) boxes present their own severe issues. They suffer from rapid UV degradation and become highly brittle during prolonged outdoor deployments.
You need a better solution to protect your grid assets. An SMC fiberglass meter box for single phase applications offers a zero-maintenance alternative. It provides high insulation and exceptional vandal resistance. Engineers specifically design these enclosures for long-term utility deployments. In this guide, we will explore the material science behind Sheet Molding Compound (SMC). We will examine critical protection ratings. You will also learn how to evaluate structural integrity and assess customization options before your next bulk procurement. Ensuring reliable power distribution relies entirely on the quality of your physical infrastructure.
Engineered for Durability: SMC fiberglass eliminates the corrosion risks of metal and the UV-degradation risks of standard plastics, ensuring a lifespan of 20+ years.
Proven Field Protection: Verified IP54 (dust and water splash protection) and IK10 (maximum impact resistance) ratings reduce maintenance costs and meter damage.
Optimized for Single Phase: Specifically dimensioned for standard single-phase residential meters, including smart and prepayment meter configurations.
Procurement Efficiency: Evaluating structural integrity, customization options (OEM/ODM), and mounting hardware is critical for reducing overall expenses.
Material Science Breakdown. SMC stands for Sheet Molding Compound. We create this composite by mixing glass fibers with premium polyester resin. We also add specific catalysts and release agents. The mixture undergoes high-pressure molding at high temperatures. The result is a robust thermosetting plastic. It significantly outperforms traditional enclosure materials. The dense cross-linked molecular structure provides immense structural rigidity.
SMC vs. Metal. Metal enclosures rust quickly in damp environments. Constant moisture destroys them over time. You must constantly paint or treat them to prevent decay. Metal boxes also conduct electricity. You must install complex earth grounding systems to ensure public safety. SMC acts as a Class II insulator. It completely blocks electrical current. This high dielectric strength protects field technicians. You eliminate the need for grounding wires. The installation process becomes much faster and significantly safer.
SMC vs. Polycarbonate/ABS. Plastics like PC or ABS seem convenient initially. However, they warp rapidly in extreme heat. Direct UV rays break down their molecular structure. They become brittle and eventually shatter under slight pressure. SMC offers superior thermal stability. It maintains its exact shape during extreme temperature fluctuations. We often see SMC achieving a strict UL94 V-0 fire retardance rating. It extinguishes itself immediately if exposed to an open flame. Furthermore, it completely resists UV-induced embrittlement.
Business Outcome. Utility companies face high maintenance costs year after year. Replacing cracked or rusted boxes drains operational budgets. Choosing an SMC meter box solves this persistent problem. It lowers field replacement rates drastically. You cut long-term grid maintenance budgets. Your service teams spend less time repairing damaged enclosures. They can focus on expanding network capacity instead.
Demystifying IP54. You hear the term IP54 thrown around often. What does it actually mean in the real field? The number "5" indicates strong dust protection. Fine dust may enter in tiny amounts, but it will never disrupt electrical components. The number "4" signifies protection against splashing water. Water can spray from any direction without causing internal harm. You can confidently deploy an IP54 IK10 rated box in exposed outdoor environments. It easily handles driving rain, morning dew, and heavy winds.
The IK10 Advantage. Impact resistance matters heavily in public spaces. IK10 represents the absolute highest standard for mechanical impact protection. The enclosure successfully withstands a 20-joule physical impact. Imagine dropping a 5kg solid steel mass from a height of 40 centimeters directly onto the box. The enclosure survives without any functional damage. This immense strength proves critical for preventing vandalism. It stops accidental strikes from landscaping machinery. It forcefully deters unauthorized tampering and power theft.
Implementation Risk. Some low-quality suppliers claim these ratings loosely. You face severe implementation risks if you buy unverified products. Always demand solid proof from your manufacturing partners. You should request official third-party lab test reports. Check the environmental sealing certificates thoroughly. Verify the impact resistance test results. These official documents ensure the product performs exactly as claimed. Do not risk your infrastructure on untested, cheap enclosures.
Pole-Mounted vs. Wall-Mounted Installations. Utilities install enclosures in widely varied locations. You need deep structural versatility. Pole-mounted installations endure constant, multi-directional wind shear. Wall-mounted units face uneven brick surfaces and building vibrations. A proper single phase meter box features heavily reinforced mounting brackets. These molded anchor points must not crack under heavy hardware weight. They must distribute physical stress evenly across the entire back panel.

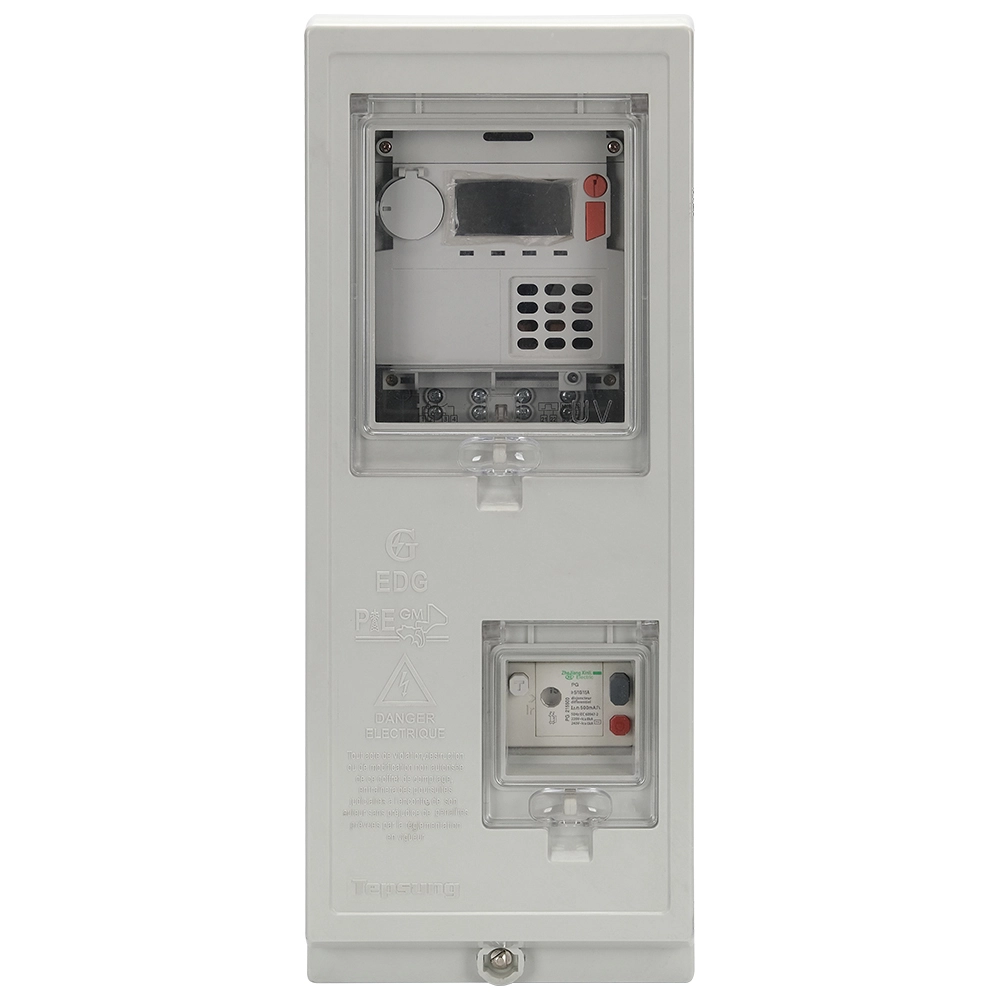

Smart and Prepayment Meter Integration. The global energy sector is rapidly transitioning to smart grids. Prepayment systems dominate many residential utility markets today. These advanced meters require very specific enclosure features. You need transparent, highly UV-resistant viewing windows. Technicians must read digital data without opening the main door. Consumers need secure keypad access panels to input top-up codes safely. The enclosure must integrate these custom openings seamlessly. It cannot compromise the overall sealing integrity.
Harsh Environment Suitability. Coastal environments destroy standard electrical equipment. High-salinity ocean air accelerates metal corrosion rapidly. Extreme temperature zones cause normal plastics to melt or shatter instantly. SMC outperforms all available alternatives in these harsh conditions. It completely ignores corrosive salt spray. It thrives in blistering desert sun and endures freezing winter storms without cracking.
How do you separate average enclosures from premium ones? You must evaluate specific structural criteria during the procurement phase.
Structural Integrity. Examine the physical build first. Look closely for uniform wall thickness. Inspect the internal corners and external edges for molding defects. Thin or uneven walls heavily compromise the IK10 impact rating. The enclosure will eventually fail under mechanical stress.
Security & Anti-Tampering. Power theft remains a massive global challenge. Assess the locking mechanisms carefully. You should look for robust, corrosion-resistant door hinges. They should be hidden or internally reinforced. Multi-point locking systems offer superior perimeter security. Lead-seal provisions allow you to easily track unauthorized access.
Internal Configuration. Electrical contractors value fast, simple installation. The optimal fiberglass meter box offers modular internal base plates. It includes easily adjustable DIN rails. Pre-knocked cable entry and exit points save hours of field labor. Installers can quickly adapt the empty box to various wiring setups.
Ventilation vs. Sealing. Tightly sealed boxes often trap internal moisture. Rapid temperature drops cause heavy internal condensation. Water droplets subsequently damage sensitive smart electronics. Top-tier boxes balance active ventilation and strict sealing. They use engineered labyrinth vents. These clever designs allow internal airflow but block direct water ingress. They prevent dangerous condensation buildup while maintaining strict environmental protection.
Evaluation Category | Key Features to Verify | Expected Benefit |
|---|---|---|
Structural Integrity | Uniform wall thickness, lack of molding defects | Guarantees IK10 mechanical impact resistance |
Security | Hidden hinges, multi-point locks, lead-seal tabs | Prevents physical tampering and power theft |
Internal Layout | Modular base plates, adjustable DIN rails | Accelerates contractor installation and wiring |
Environmental Control | Labyrinth vents, tight IP54 door gaskets | Stops condensation while blocking dust/water |
Cost Drivers. Several variables heavily influence enclosure pricing. Tooling costs for custom molds require upfront capital investment. Batch volume directly impacts per-unit pricing. High-volume bulk orders reduce manufacturing overhead significantly. Resin quality dictates the final structural strength and lifespan. Adding integrated components like circuit breakers or copper busbars increases the initial purchase price.
Customization Capabilities. Utility companies have unique network needs. You should request specific customizations from OEM/ODM suppliers. Ask them to mold your company logo directly into the outer door. This simple step deters theft and establishes clear brand presence. Specify exact knockout dimensions for your standard utility cables. Request pre-wired, ready-to-install setups to reduce expensive field labor.
Here are the primary customization requests you should consider:
Molded corporate logos for asset tracking
Specific cable knockout sizes matching local grid standards
Pre-installed DIN rails and miniature circuit breakers
Custom viewing window placements for specific smart meters
Color-matched resin blending to match urban aesthetics
Shortlisting Logic. Procurement teams must look past the initial sticker price. Balance the upfront unit cost against long-term operational savings. A cheaper plastic box requires field replacement in five short years. A properly engineered durable meter box lasts two full decades. It resists UV decay and withstands violent vandalism. This proven reliability drastically reduces your overall expenses.
Transitioning to SMC fiberglass enclosures for single-phase networks is a highly proven strategy. It effectively mitigates both environmental decay and physical vandalism risks. You secure your critical infrastructure against the harshest natural elements while ensuring grid stability. The initial investment pays off through drastically reduced maintenance cycles.
We recommend following a structured procurement path:
Audit your current network enclosure failure rates.
Identify specific regions where metal rusts or plastic cracks.
Request physical samples of highly rated SMC boxes.
Conduct rigorous field testing in your specific local climate.
Verify all supplier certifications and third-party lab reports.
A: SMC utilizes strong glass fiber reinforcement bound within a thermosetting polyester resin. Unlike standard plastics, it undergoes an irreversible chemical reaction during molding. This prevents the material from melting or deforming under extreme heat. It inherently resists cracking and completely blocks UV decay, ensuring decades of reliable outdoor performance.
A: Yes. An IP54 rating guarantees robust protection against water spraying from any direction. It easily repels natural driving rain, splashing water, and severe weather conditions. However, manufacturers do not design IP54 enclosures for total underwater submersion or direct blasts from high-pressure water jets.
A: No. SMC fiberglass features exceptionally high dielectric strength, classifying it as a Class II insulator. The material itself cannot conduct electricity. This built-in safety characteristic eliminates the need for grounding the enclosure body. Installers save significant time and wiring costs during the deployment process.
A: Manufacturers design them to universal dimensional standards, accommodating the majority of single-phase footprints. However, modern smart grids and prepaid systems often feature bulky keypads or communication modules. You must always cross-reference your specific meter's internal mounting dimensions with the enclosure's base plate capacity before installation.
