Moving from single-device smart plugs to whole-home energy monitoring changes everything. You gain complete visibility over your consumption by tracking circuits directly at the source. However, integrating a Smart Energy Meter into an existing electrical panel introduces unique challenges. You face tight physical space constraints inside the breaker box. Communication protocols must match your central hub perfectly. Furthermore, you manage severe safety risks during the physical installation process. Doing this incorrectly can lead to massive data failures or hazardous electrical faults. This guide outlines the objective criteria for selecting highly reliable hardware. We detail the crucial safety prerequisites required before opening any panel door. Finally, you will learn a standardized deployment framework. This framework helps you seamlessly integrate panel-based hardware into local or cloud-based home automation platforms.
Selecting the right DIN Rail Smart Energy Meter depends heavily on your panel's available space (direct-connect vs. external CT clamps).
Protocol compatibility (RS485/Modbus, Zigbee, or Wi-Fi) dictates the reliability of your data handoff to systems like Home Assistant.
Installation requires working inside the main breaker panel; strict adherence to local electrical codes and safety verification (Lockout/Tagout) is non-negotiable.
The most common point of failure is incorrect Current Transformer (CT) orientation or phase mismatching during the physical wiring stage.
You must establish a clear decision framework before opening the panel. Your choice of hardware architecture dictates the entire installation process. You need to assess physical space limits. Measure the incoming service amperage carefully. Decide if you want to track the whole house or just specific branch circuits. These factors determine your ultimate upgrade path.
Direct-connect units route the actual circuit wiring directly through the meter terminals. They offer extremely high accuracy for individual loads.
Pros: They provide highly accurate data. They function as a completely self-contained unit without dangling wires.
Cons: Installation requires interrupting the live circuit completely. You must physically cut and strip thick load wires. They remain limited to lower amperage circuits. You typically see a 60A or 100A maximum rating. They consume significantly more DIN rail space per tracked circuit.
CT-based units measure the magnetic field generated by electrical current. You clamp external sensors around the existing wiring.
Pros: They provide non-invasive current measurement. You simply snap the clamps around existing live wires. This architecture scales easily to whole-home monitoring. It handles 100A, 200A, or larger services effortlessly. It works beautifully for monitoring 6-10 individual branch circuits simultaneously.
Cons: You must carefully route fragile CT wires inside the crowded panel. Accuracy drops noticeably if you size the clamps poorly. Uncalibrated sensors also degrade data quality significantly.
Feature | Direct-Connect Meters | CT-Based Meters |
|---|---|---|
Installation Type | Invasive (Requires cutting circuit wire) | Non-invasive (Snap-on clamps) |
Amperage Limit | Low to Medium (Typically up to 60A/100A) | High (Easily scales to 200A+) |
Space Efficiency | Low (Bulky unit per circuit) | High (One main unit handles multiple external CTs) |
Best Use Case | Sub-panels or single high-load appliances | Whole-home mains or multi-circuit tracking |
A meter is only as useful as the data it exports successfully. Avoid vendor-locked cloud systems whenever possible. They fail completely when your internet drops. Local control serves as the ultimate success metric. You want your energy data stored securely on your own network.
You must match your communication protocol to your specific automation hub capabilities.
RS485/Modbus RTU: This remains the industry standard for reliability. It requires a hardwired twisted-pair data line. You connect this line to an edge gateway or USB dongle. It works best for robust, localized setups.
Zigbee/Z-Wave: These protocols create a resilient local mesh network. They offer excellent compatibility. They integrate easily into local systems like Home Assistant via Zigbee2MQTT or ZHA.
Wi-Fi (ESP32/ESP8266 based): This offers the easiest standalone setup process. However, metal breaker boxes block radio signals heavily. This creates a severe Faraday cage effect. You also risk network drops from router congestion.
Evaluate how the device transmits data packets to your network. Some units push data instantly upon load changes. Others require aggressive polling from your hub. Frequent polling can easily overload a weaker automation hub processor. Check the manufacturer specifications for reporting intervals. Ensure your network can handle high-frequency data streams.
Electrical panel work carries extreme lethal voltage risks. You can easily violate local electrical codes without proper knowledge. Strict risk mitigation prevents catastrophic hardware failures or personal injury.
You need specialized electrical equipment. Standard household tools pose a severe safety hazard.
Insulated screwdrivers rated strictly for 1000V.
A reliable non-contact voltage tester pen.
A True-RMS multimeter for accurate phase verification.
A 35mm DIN rail segment (if your panel lacks an integrated rail).
Follow these steps religiously before touching any metal components inside the box.
Isolation: Shut off the main panel breaker entirely. Understand clearly that the incoming utility lines remain dangerously live at all times.
Verification: Test all targeted circuits carefully. Use your True-RMS multimeter probes to ensure absolute zero voltage before proceeding.
Compliance: Acknowledge local jurisdiction rules. Many areas strictly require a licensed electrician to pull permits for major panel modifications.
A methodical approach guarantees a safe and functional deployment. Follow this standardized process to integrate your hardware correctly.

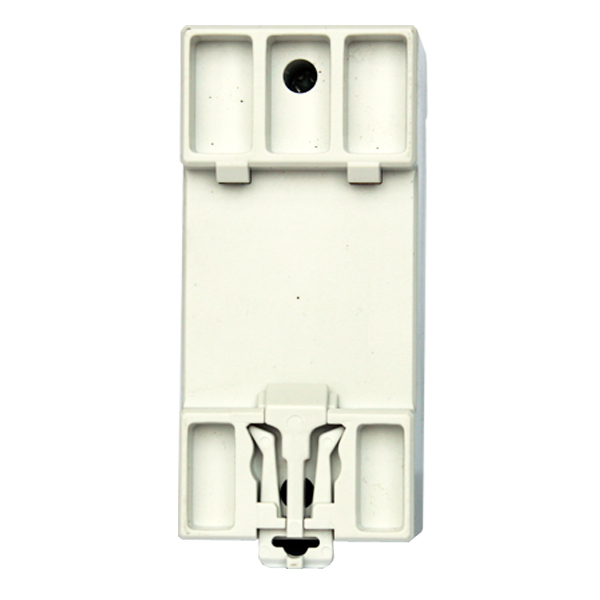

Mounting the Hardware: Secure your DIN Rail Smart Energy Meter directly to the standard 35mm rail. Ensure you leave adequate heat dissipation space on both sides. Do not cram the unit tightly between hot breakers. Excess heat degrades the internal electronics over time.
Wiring the Voltage Reference (L/N): Wire the Line (L) and Neutral (N) terminals carefully. Connect them to a dedicated, low-amperage breaker. This supplies continuous power to the meter. It also provides a baseline voltage reading for accurate wattage calculation. Important: Ensure your voltage reference perfectly matches the measured current phase. Mismatching phases generates entirely inaccurate data.
Attaching Current Transformers (If Applicable): Clip the external CTs securely around the insulated live wires. Make sure the clasp closes completely without pinching the wire jacket. Critical Error Prevention: Align the directional arrows carefully. The arrows on the CTs must point strictly toward the load. They must point away from the grid. Reversing this orientation results in confusing negative wattage readings.
Securing Communications: Route your RS485 twisted-pair cables neatly. Keep them physically separated from high-voltage AC lines. This prevents severe electromagnetic signal degradation. If using wireless protocols, attach external Wi-Fi or Zigbee antennas outside the metal enclosure. Drill a small knockout and mount the antenna securely.
Installation ends when the software receives accurate data. You must verify local hardware operations before configuring your automation dashboards.
Restore panel power carefully. Check the physical LED status indicators immediately. Look for stable power lights. Verify active network connection blinks. Watch for consistent pulse outputs when loads activate. If the screen flashes an error code, shut off the power immediately. Double-check all terminal torque settings.
Discover the device on your local network. You can also pair it via your Zigbee coordinator. Open your automation interface. Configure the built-in energy dashboard specifically. Assign the correct internal sensors. You will typically select an entity like `sensor.total_energy_kwh`. Map this entity carefully to Grid Consumption. Map reverse flow to Solar Return if you generate power.
You must confirm accuracy mechanically. Run a high-load appliance like a kettle or clothes dryer. Watch your dashboard closely. Verify the real-time wattage spike matches the expected appliance draw. Let the system run for a month. Reconcile the first 30 days of captured data against your official utility bill. This helps you verify and adjust internal scaling factors perfectly.
Installing a panel-level monitor elevates your smart home architecture immensely. It shifts your setup from basic automation to advanced, data-driven energy management. Success relies entirely on matching your hardware to the physical constraints of the panel. You must also align communication protocols tightly with your hub demands.
Next Steps:
Review your available breaker panel space carefully before purchasing hardware.
Verify your preferred software integration method (strictly local vs. cloud-based).
Procure a Smart Energy Meter matching your main breaker's exact amperage rating.
Always consult a certified electrician if you feel unsure about panel safety procedures.
A: Yes, but only if the box has an integrated 35mm DIN rail. If not, you may need to install an external sub-enclosure next to the main panel to house the meter, routing the CT wires through a knockout.
A: Multi-channel CT-based meters (e.g., specialized ESP32-based multi-circuit boards) are significantly more cost-effective than installing 6 to 10 individual direct-connect DIN rail meters.
A: This is almost always an installation error where the CT clamp was installed backward. The arrow on the clamp must point in the direction of the current flow (toward the appliance/load).
A: Adding third-party, non-UL/CE-listed devices directly to the busbar can violate local codes. Always use certified devices, utilize appropriate breaker protection for the meter's power supply, and check local regulations regarding DIY panel modifications.
